Office 2007 Themes

The Office 2007 themes, which are represented by the Office2007BlackTheme, Office2007BlueTheme, and Office2007SilverTheme classes, are pixel-perfect themes that can be seamlessly integrated into any Office 2007-like application. The themes were designed to blend prefectly with the corresponding Elemental themes.

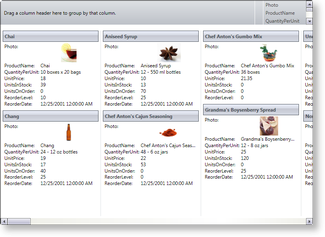

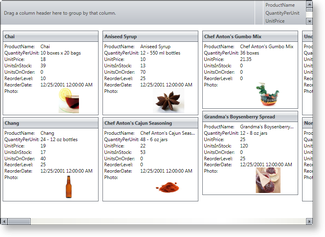

Figure 1: Card view in Office 2007 Black theme	Figure 2: Table view in Office 2007 Blue theme	Figure 3: Compact-card view in Office 2007 Silver theme

The Office 2007 themes are contained in a "Theme Pack" that contains various non-system themes. In order to use the Office 2007 themes, which are located in Theme Pack 1, the containing assembly must be added to the project references (see Table 1). Like other themes, they can be set using either attribute syntax or property element syntax through a multi-surface view's Theme property (see Example 1).

Table 1: Office 2007 theme syntaxes

Theme	Color scheme	Attribute syntax	Property element syntax	Target views	Assembly
Office	2007	Blue	[View.]Office2007.Blue [View.]Office2007BlueTheme	Office2007BlueTheme	TableflowView and TableView CardView and CompactCardView
Office	2007	Black	[View.]Office2007.Black [View.]Office2007BlackTheme	Office2007BlackTheme	TableflowView and TableView CardView and CompactCardView
Office	2007	Silver	[View.]Office2007.Silver [View.]Office2007SilverTheme	Office2007SilverTheme	TableflowView and TableView CardView and CompactCardView

Examples

All examples in this topic assume that the grid is bound to the Employees table of the Northwind database, unless stated otherwise.

Example 1: Using Office 2007 themes

The following example demonstrates how to set an Office 2007 using property element syntax.

<Grid xmlns:xcdg="http://schemas.xceed.com/wpf/xaml/datagrid">
   <Grid.Resources>
      <xcdg:DataGridCollectionViewSource x:Key="cvs_employees"
                              Source="{Binding Source={x:Static Application.Current}, Path=EmployeesTable}"/>
   </Grid.Resources>
   <xcdg:DataGridControl x:Name="EmployeesGrid"
                         ItemsSource="{Binding Source={StaticResource cvs_employees}}">
     <xcdg:DataGridControl.View>
        <xcdg:CardView>
           <xcdg:CardView.Theme>
              <xcdg:Office2007BlackTheme/>
           </xcdg:CardView.Theme>
        </xcdg:CardView>
     </xcdg:DataGridControl.View>
   </xcdg:DataGridControl>
</Grid>
